Reciprocating Compressors

Oil Free

Ventos reciprocating compressors, are ideal for continuous 24 x 7 process duty. These reciprocating compressors, have non-lubricated compression cylinders, with distance piece as per API618 type B or C. The compressors are designed for oxygen gas service.

The compression ratio is low, and compressors are water cooled. This ensures maximum safety required for oxygen gas.

We have a number of models, which can serve a range of inlet/outlet pressures and flow rates.

Reciprocating Compressor range

  • Minmum suction pressure: 0 barg
  • Max discharge pressure: 45 barg
  • Max Flow rate: 2000 Nm3/hr

    Common Applications

  • Compressing Oxygen and Nitrogen gas in steel plants
  • Oxygen gas compression in Gold Mines
  • Hydrogen compression in chemical, pharmaceutical and refinery processes
  • CO2 liquefaction plants
  • Biogas upgrading plants
  • Natural gas - Boosting gas pressure from pipelines or wells
  • Nitrous oxide gas production plants
  • Gas recovery from reactors

    Advantages of Ventos Reciprocating compressors

  • Leak tight gland packing seals
  • Non-lubricated compressors do not contaminate gas
  • No filters required downstream of compressor
  • Designed for 24 x 7 continuous running
  • Low vibration and noise

    Technical features

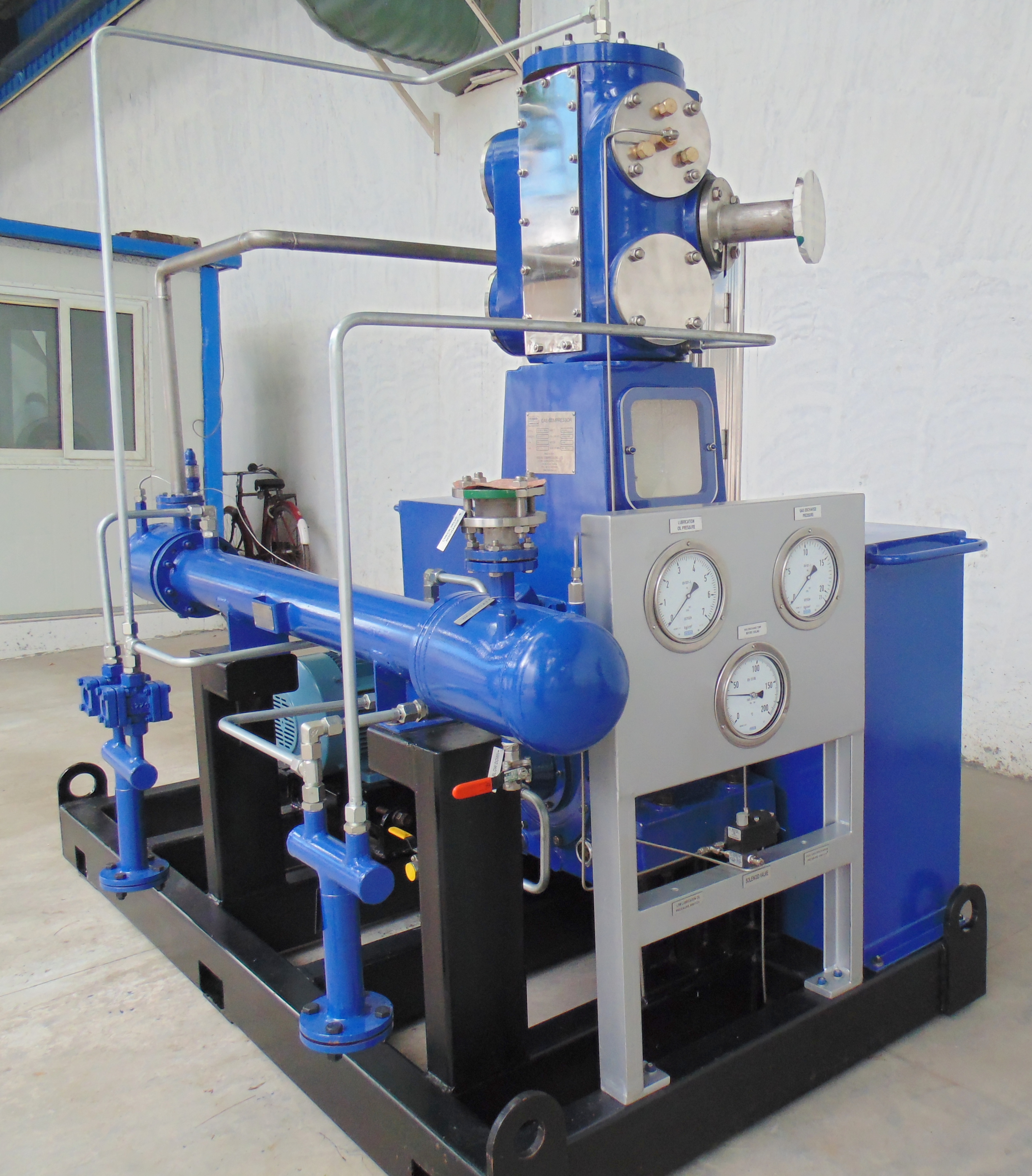

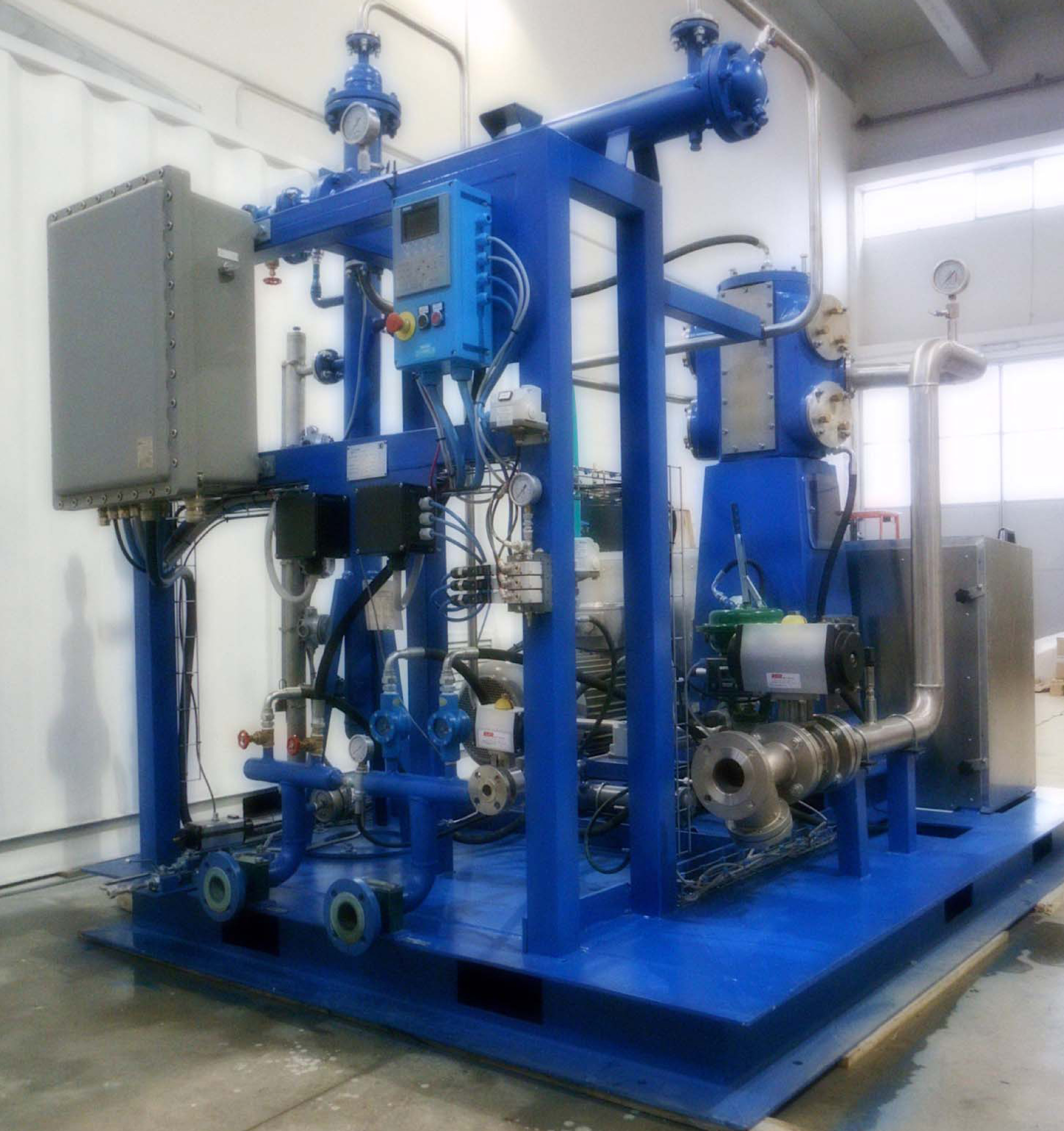

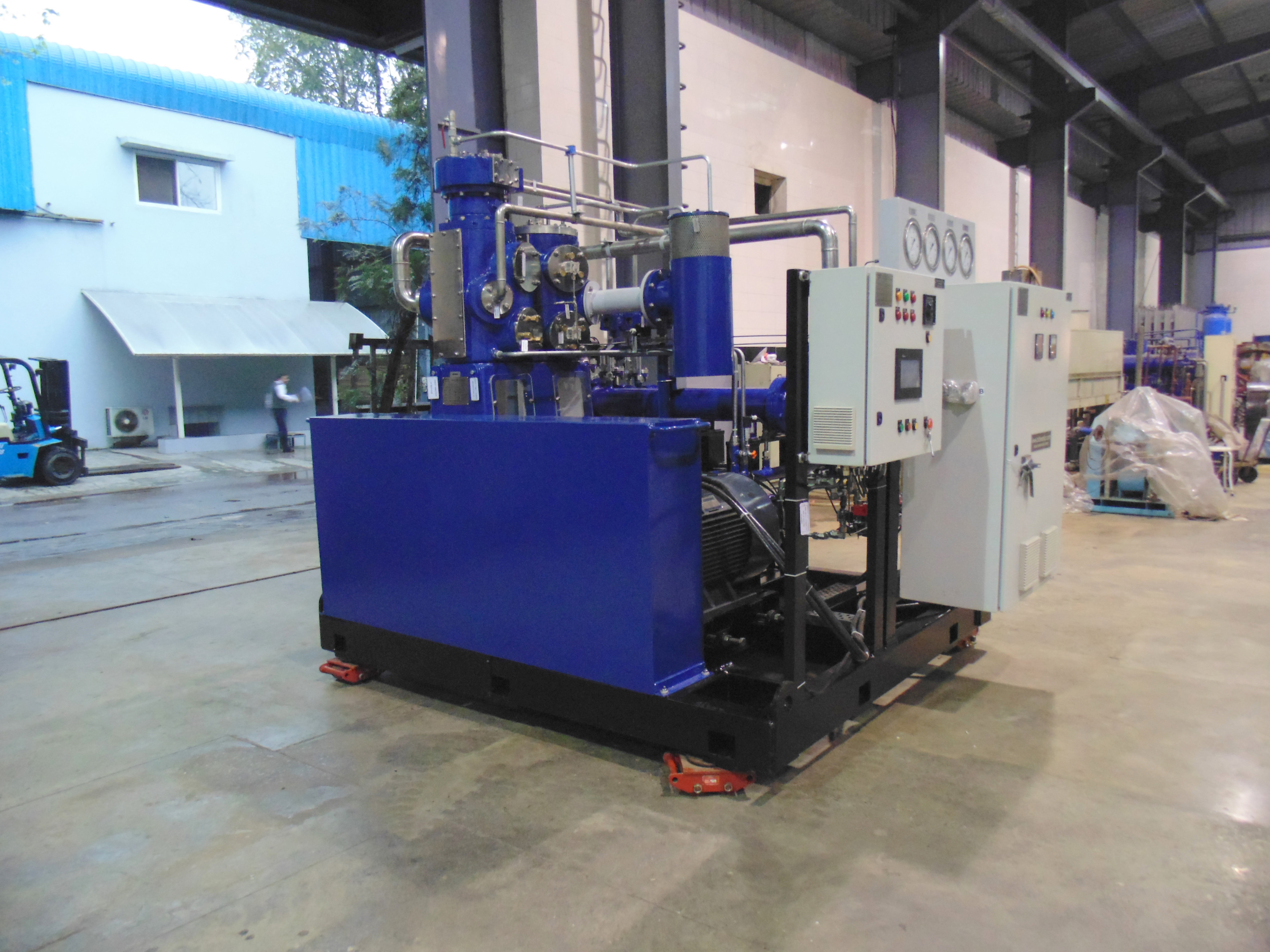

  • Skid mounted package, complete with electric motor, Electrical control panel
  • One touch PLC operation
  • CE, ATEX, PED, EAC certifications available
  • All compressors are custom designed as per customer data

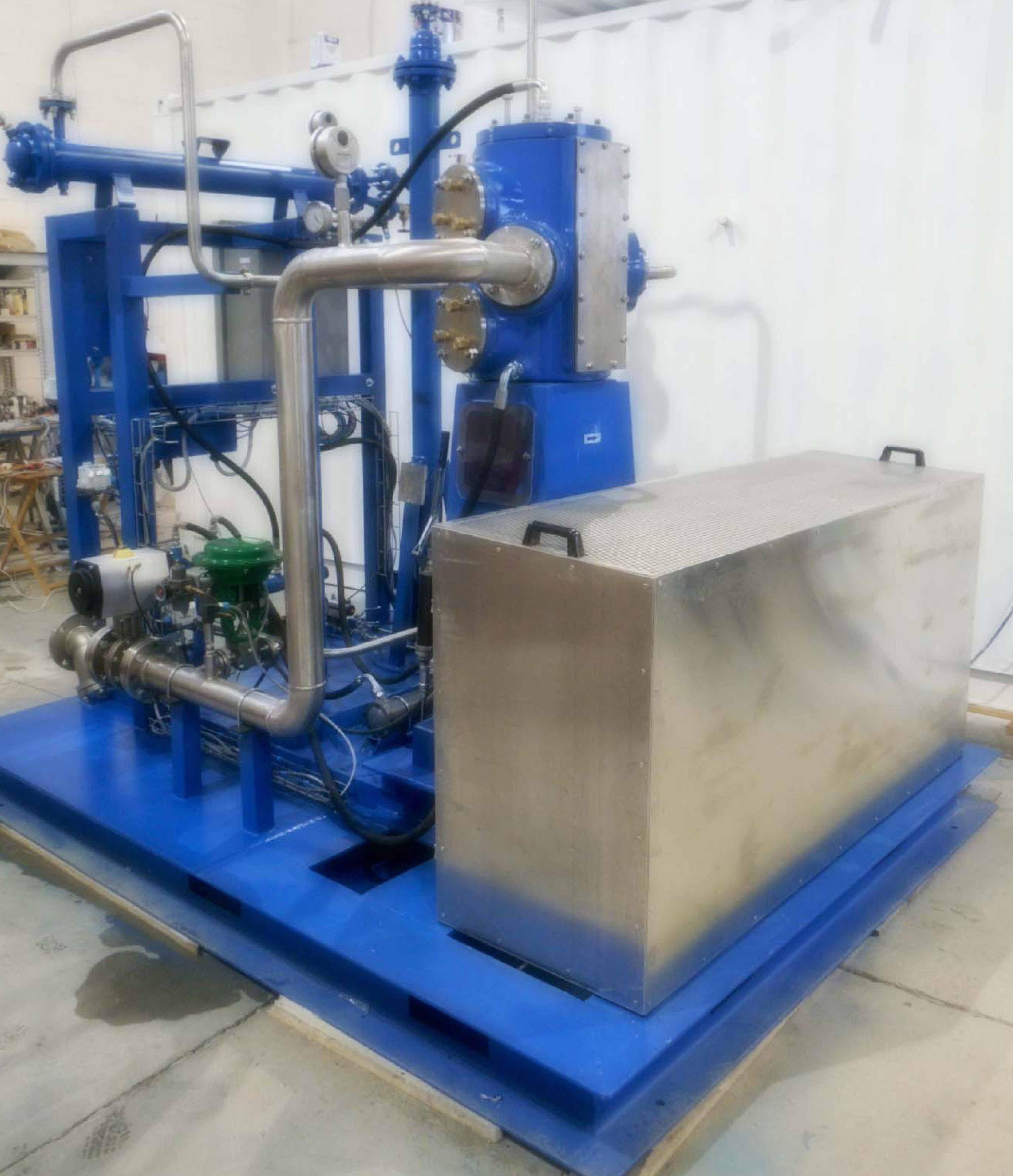

  • Sound proof enclosures, closed loop water cooling optional
  • Long life of Piston rings, Gas Valves, Gland seals
  • All stainless steel gas contact
  • Suction valve unloaders
  • Flow recycle valves
